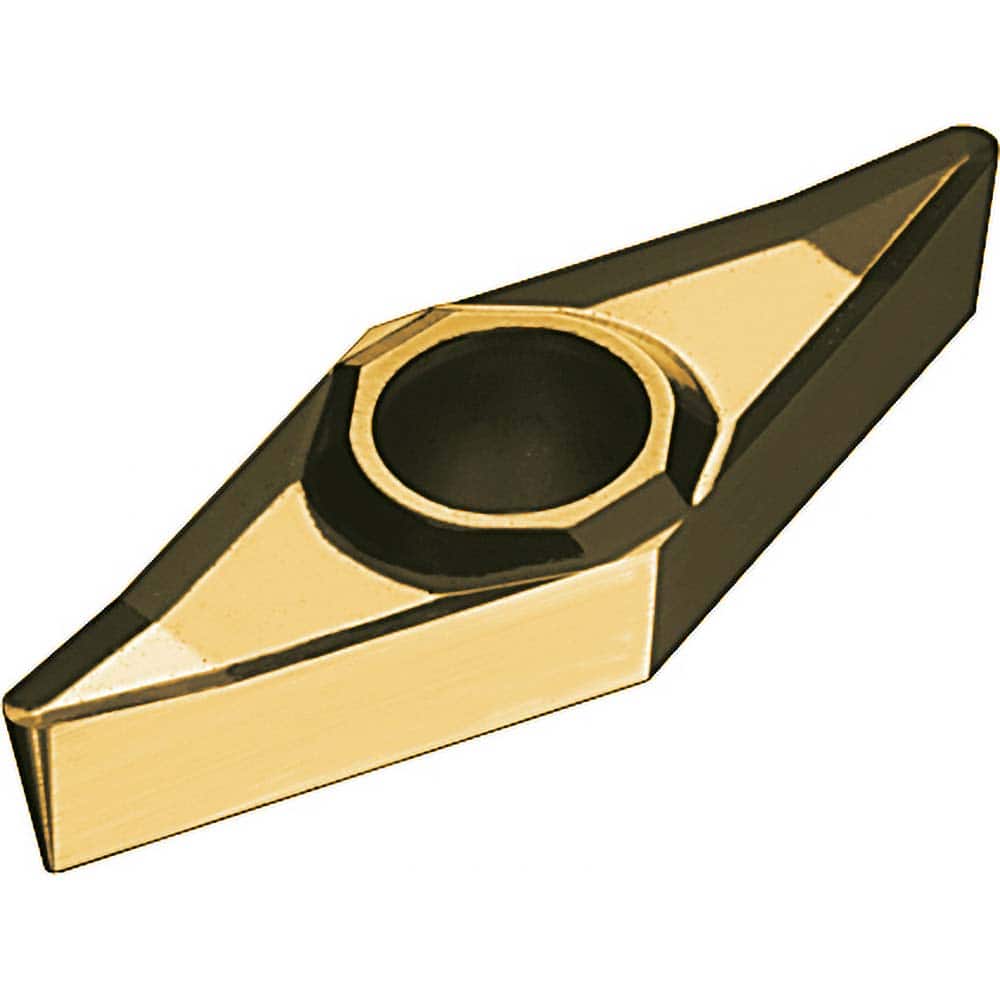

VCGT1.21.505FNALU AT10 Carbide Turning Insert Neutral, 6.92mm Long, 3.97mm Inscribed Circle, 0.2mm Corner Radius, 2.38mm Thick, 35° Diamond
Item #: 72988041
Brand: Arno
Model #: 28157
Product Specifications
| Insert Style | VCGT |
| Insert Shape Code | V |
| Insert Size Code | 1.21.50.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AT10 |
| Hole Diameter (Decimal Inch) | 2.2000 |
| Maximum Depth of Cut (mm) | 1.00 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (mm) | 6.92 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | P; S; K; M |
| Iso Code | VCGT 070202FN-ALU AT10 |
| Manufacturers Catalog Number | VCGT070202FNALU |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Style | VCGT |
| Industry Standard Number | VCGT070202FNALUAT10 |
| Width (Mm - 2 Decimals) | 3.97 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Machining; Turning |
 | |
| MSC Part # | 72988041 |
| Mfr Part # | 28157 |
| Country of OriginCountry of Origin is subject to change | Germany |
