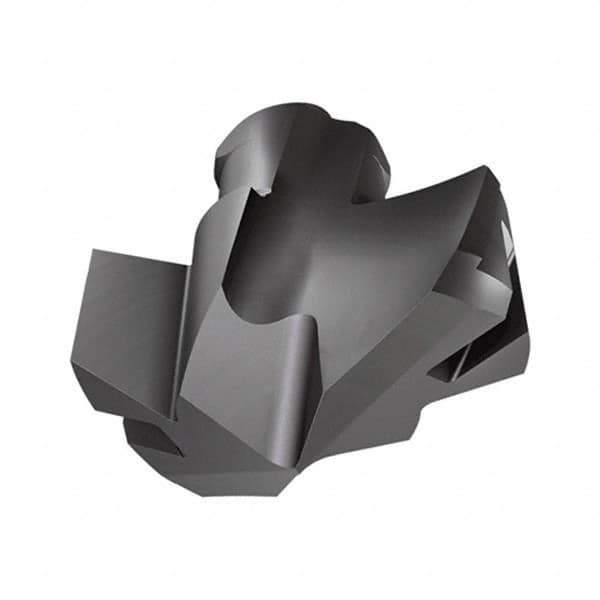

Iscar - Series ICK, 24.89mm Diam Grade IC908 140° Replaceable Drill Tip - Carbide, TiAlN Finish, 24 Seat Size
Item #: 72858251
Brand: Iscar
Model #: 5506774
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Diameter (mm) | 24.89 |
| Diameter (Decimal Inch) | 0.9800 |
| Included Angle | 140 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Series | ICK |
| Coating | TiAlN |
| Insert Seat Size | 24 |
| Through Coolant | NonThrough Coolant |
| Coating Process | PVD |
| Height (mm) | 14.00 |
| Height (Decimal Inch) | 0.5510 |
