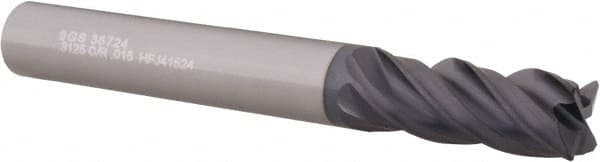

SGS - 5/16" Diam 4 Flute Solid Carbide 0.015" Corner Radius End Mill
Item #: 72843998
Brand: SGS
Model #: 36724
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0150 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 13/16 |
| Length of Cut (Decimal Inch) | 0.8125 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Variable Index | Yes |
| Variable Helix | Yes |
| Single or Double End | Single |
| Centercutting | No |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.0000/-0.0016 |
| Corner Radius Tolerance (Decimal Inch) | +0.000/-0.002 |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00035 |
| Extended Reach | No |
| Series/List | Z1PCR |
