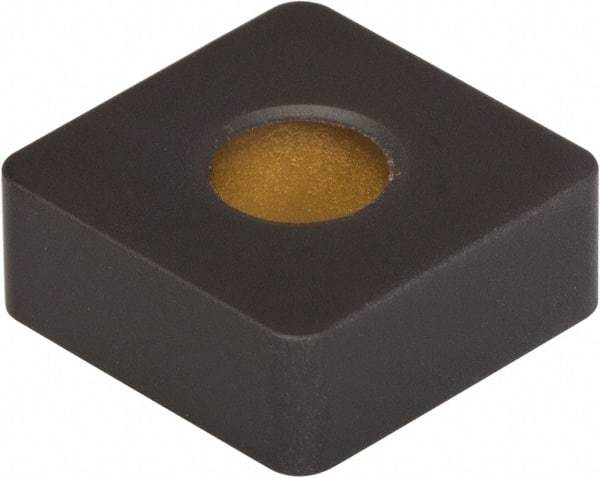

Kennametal - SNGA433 T0420 Grade KYS25 Ceramic Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 72782857
Brand: Kennametal
Model #: 4129562
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SNGA |
| Insert Size | 433 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KYS25 |
| Coating | Uncoated |
| Chip Breaker | T0420 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | SNGA120412T01020 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | SNGA433T0420 |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
