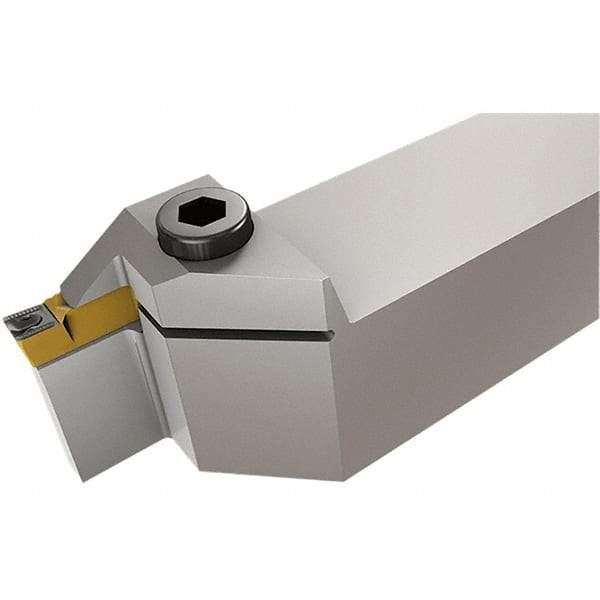

Iscar - HELI, External, Left Hand, 0.157 to 3/16" Groove Width, Indexable Grooving Tool Holder - DG.. 4003, GRIP 4.. Insert Compatibility, 1-1/4" Shank Height, 1-1/4" Shank Width, 7" OAL
Item #: 72736044
Brand: Iscar
Model #: 2500611
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1870 |
| Overall Length (Decimal Inch) | 7.0000 |
| Toolholder Style | HELI |
| Insert Compatibility | DG.. 4003; GRIP 4.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Series | Heli-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Turning |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.9700 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1900 |
| Complete Insert Compatibility | DGL 4003C-4D; DGN 4003C; DGN 4003J; DGN 4003JT; DGR 4003C-4D; GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y |
