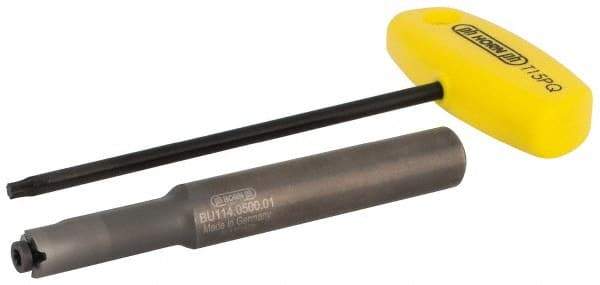

HORN - BU114, Internal, Neutral, 0.157" Max Depth of Cut, 0.157" Max Groove Width, Indexable Grooving Tool Holder - U114 Insert Compatibility, 1/2" Shank Width, 3-15/16" OAL, Through Coolant
Item #: 72679012
Brand: HORN
Model #: BU114.0.500.01
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Overall Length (Decimal Inch) | 3.9370 |
| Toolholder Style | BU114 |
| Insert Compatibility | U114 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Maximum Hole Depth (Decimal Inch) | 1.3380 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5430 |
| Center to Cutting Edge (Decimal Inch) | 0.3540 |
| Head Height (Decimal Inch) | 0.4330 |
| Toolholder Material | Carbide (Shank) |
