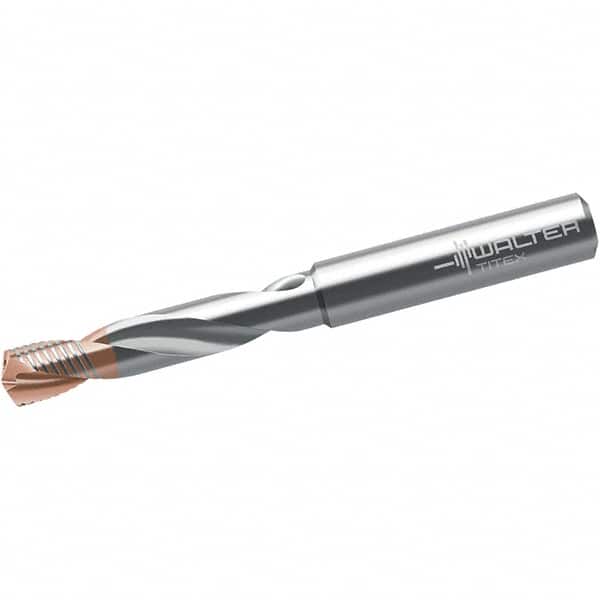

Walter-Titex - 19/64" 140° Spiral Flute Solid Carbide Screw Machine Drill Bit
Item #: 41794488
Brand: Walter-Titex
Model #: 6745117
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2969 |
| Drill Bit Size (Inch) | 19/64 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiNAl/AlCrN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 41.00 |
| Flute Length (Decimal Inch) | 1.6140 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1100 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Flute Type | Spiral |
| Maximum Drilling Depth (mm) | 29.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.1420 |
| Number of Flutes | 2 |
| Number of Flutes | 2 |
| Drill Point Length (mm) | 1.37 |
| Drill Point Length (Decimal Inch) | 0.0540 |
| Series/List | DC170 |
