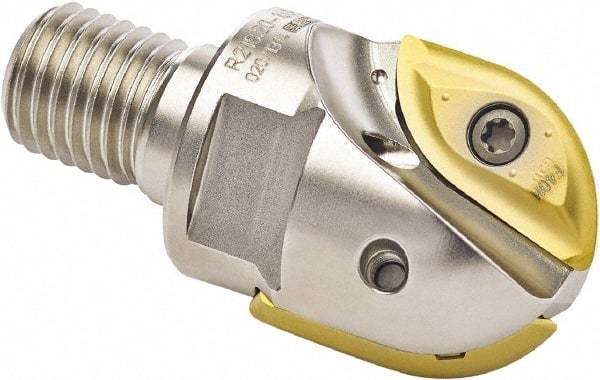

Seco - 32mm Cut Diam, 27.99mm Max Depth of Cut, Indexable Ball Nose End Mill - 40.01mm Head Length, M16 Modular Connection, R218.20 Toolholder, 218.20 160 Insert
Item #: 72535693
Brand: Seco
Model #: 07774
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 27.99 |
| Maximum Depth of Cut (Decimal Inch) | 1.1020 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20 160 |
| Toolholder Style | R218.20 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 40.01 |
| Head Length (Decimal Inch) | 1.5750 |
| Maximum RPM | 10900 |
