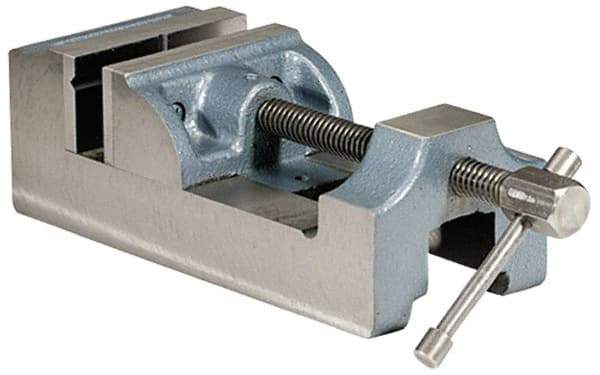

Palmgren - 3" Jaw Opening Capacity x 1-1/2" Throat Depth, Horizontal Drill Press Vise - 2-7/16" Wide Jaw, Stationary Base, Standard Speed, 7-1/2" OAL x 2-9/16" Overall Height, Cast Iron
Item #: 72501539
Brand: Palmgren
Model #: 9612251
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 2-7/16 |
| Jaw Opening Capacity (Inch) | 3 |
| Jaw Opening Capacity (Decimal Inch) | 3.0000 |
| Throat Depth (Inch) | 1-1/2 |
| Throat Depth (Decimal Inch) | 1.5000 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 7-1/2 |
| Overall Height (Inch) | 2-9/16 |
| Vise Material | Cast Iron |
| Model Number | 10 |
| Jaw Style | Grooved |
| Jaw Material | Steel |
