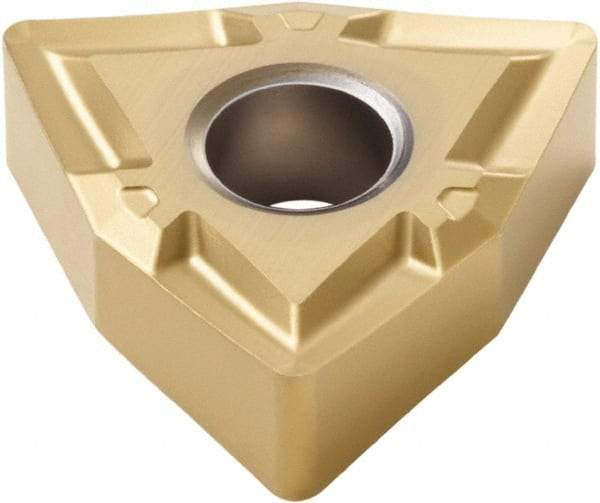

Seco - WNMP332 MF1 Grade TS2000 Carbide Turning Insert - TiAlN/TiN Finish, 80° Trigon, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 72493489
Brand: Seco
Model #: 38992
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMP |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | TS2000 |
| Coating | TiAlN/TiN |
| Material Grade | C6 |
| Chip Breaker | MF1 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Trigon |
