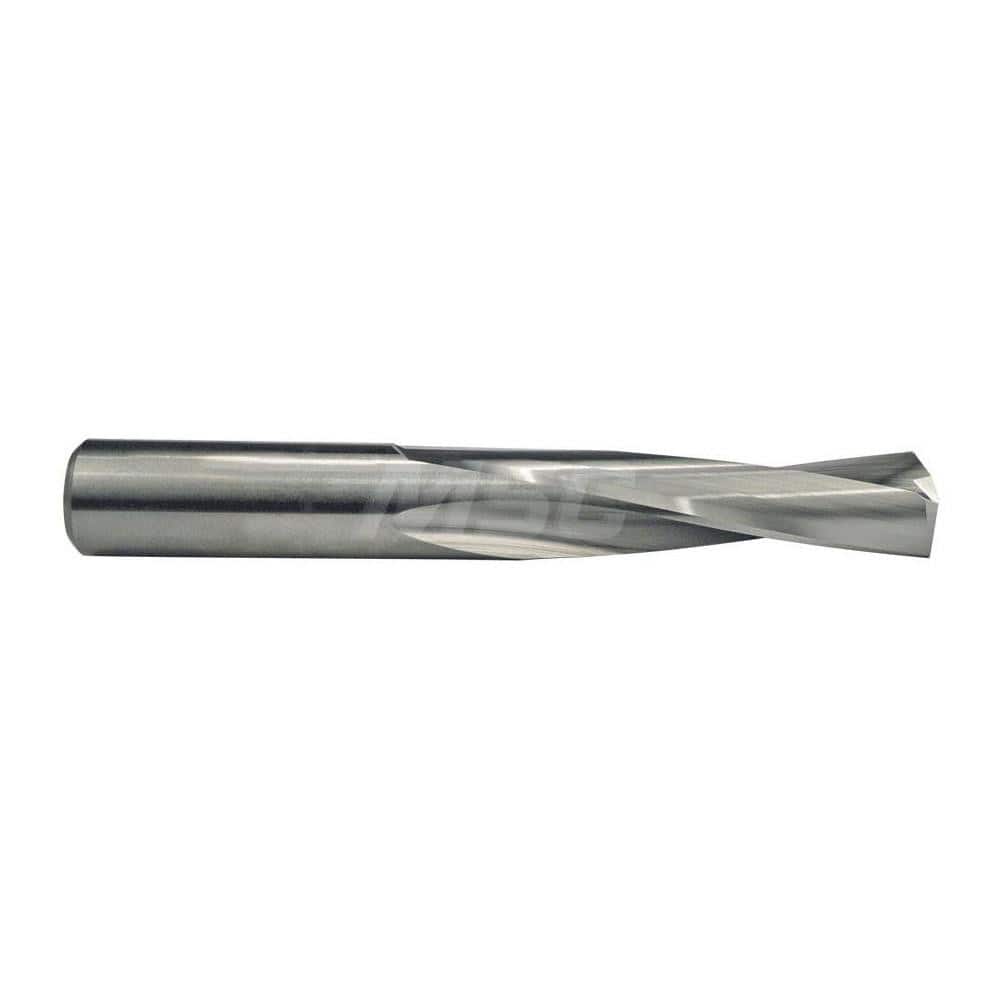

Screw Machine Length Drill Bit: 0.4062″ Dia, 135 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 205
Item #: 72463268
Brand: M.A. Ford?
Model #: 20540620
Product Specifications
| Drill Bit Size (Inch) | 13/32 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 135 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4062 |
| Drill Bit Size (Decimal Inch) | 0.4062 |
| Overall Length (Inch) | 3-5/16 |
| Series | 205 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Inch) | 1-15/16 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
