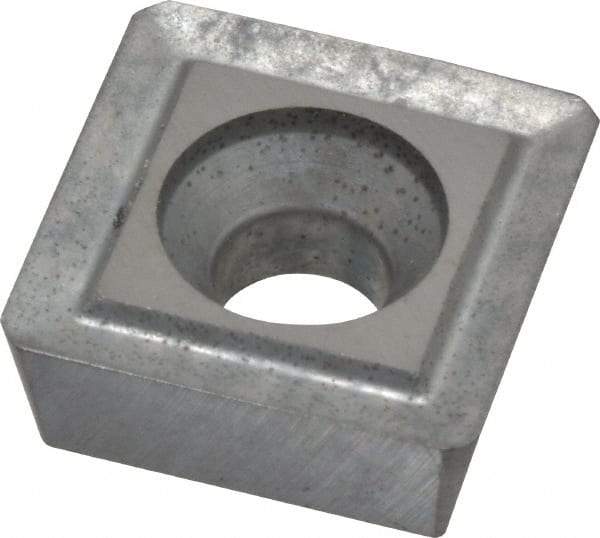

Interstate - SPGH433 HF Grade I55 Carbide Turning Insert - TiN Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 72459621
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPGH |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | I55 |
| Coating | TiN |
| Material Grade | C5 |
| Chip Breaker | HF |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Rake | Positive |
| Rake Angle | 9.5 |
| Relief Angle | 11 |
| Primary Workpiece Material | P |
| Included Angle | 90 |
| Series | American Standard |
| Insert Holding Method | Screw |
| Shape | Square |
