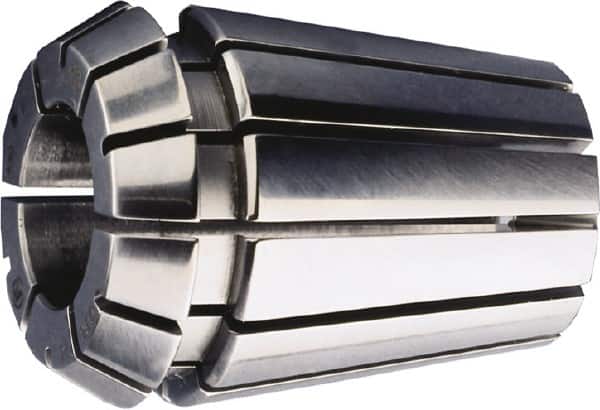

HAIMER - 8mm ER25 Collet - 0.0002" TIR, 35mm OAL, 26mm Overall Diam - Exact Industrial Supply

HAIMER - 8mm ER25 Collet - 0.0002" TIR, 35mm OAL, 26mm Overall Diam


Item #: 72423288
Brand: HAIMER
Model #: 81.250.08
Exact Tooling IR#: 04

Features and Benefits

ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
Product Specifications
Type ER Collet
Collet Series ER25
Size Range (mm) 8.00
TIR (Decimal Inch) 0.000200
Minimum Collet Capacity (mm) 7.00
Minimum Collet Capacity (Decimal Inch) 0.2756
Maximum Collet Capacity (mm) 8.00
Maximum Collet Capacity (Decimal Inch) 0.3150
Overall Length (mm) 35.00
Overall Length (Decimal Inch) 1.3780
Overall Diameter (mm) 26.00
Overall Diameter (Decimal Inch) 1.0236
Collet System ER
PSC Code 5136
$54.45
