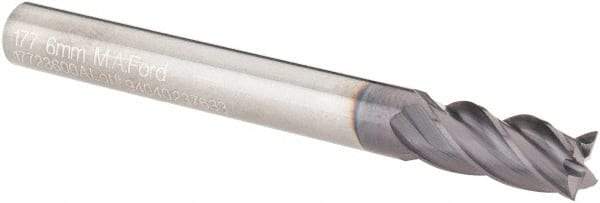

M.A. Ford - 6mm, 13mm LOC, 6mm Shank Diam, 57mm OAL, 4 Flute, Solid Carbide Square End Mill - Single End, TiAlN Finish, Spiral Flute, Variable° Helix, Centercutting, Right Hand Cut, Right Hand Flute, Series 177
Item #: 72330806
Brand: M.A. Ford
Model #: 17723600A
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 6.00 |
| Mill Diameter (Decimal Inch) | 0.2362 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 13.00 |
| Length of Cut (Decimal Inch) | 0.5118 |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Shank Diameter (mm) | 6.00 |
| Single or Double End | Single |
| Overall Length (mm) | 57.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Flute Type | Spiral |
| Mill Diameter Tolerance (mm) | +0.000/-0.048 |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 38 |
| Chipbreaker | No |
| Extended Reach | No |
| Series/List | 177 |
