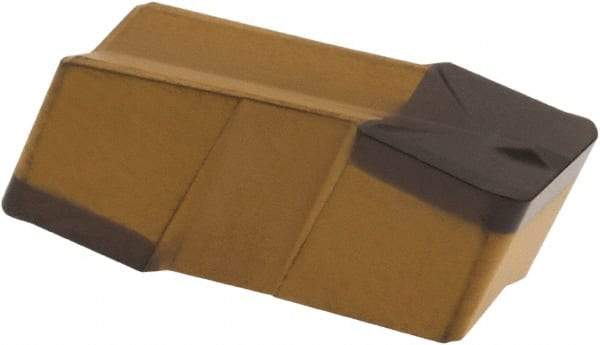

Iscar - 635080GIP E Grade IC8250, 6.35mm Cutting Width Carbide Grooving Insert - 3.8mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiCN/Al2O3 Finish
Item #: 72131451
Brand: Iscar
Model #: 6404319
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 635080 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 3.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1496 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3 |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | E |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | CVD |
