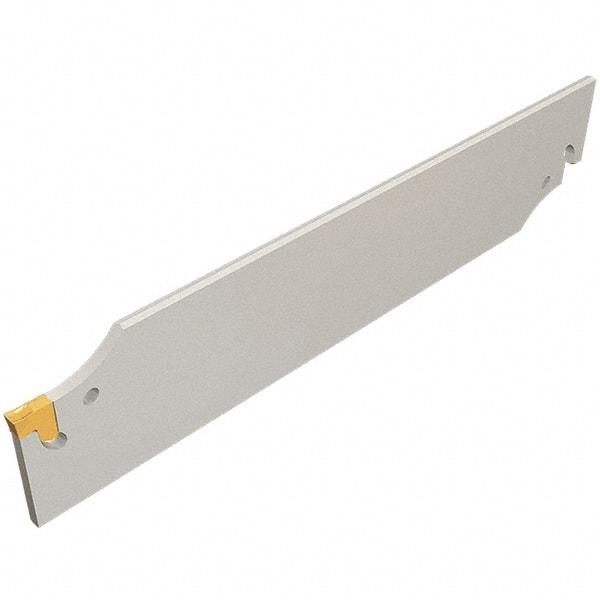

Iscar - 2.0709" Blade Height, 0.2835" Blade Width, 7.4803" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Sumo-Grip, Tang-Grip Series
Item #: 72115199
Brand: Iscar
Model #: 2302293
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 7.20 |
| Blade Width (Decimal Inch) | 0.2835 |
| Blade Overall Length (mm) | 190.00 |
| Blade Overall Length (Decimal Inch) | 7.4803 |
| Blade Style | TGFH |
| Insert Style | TAG N-C/W/M; TAGB/TAGBA |
| Insert Width (mm) | 7.70 |
| Insert Width (Decimal Inch) | 0.3031 |
| Series | Sumo-Grip; Tang-Grip |
| Tool Block/Toolholder Style | SGTBK; SGTBU/SGTBN |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 7.4803 |
| Cutting Height (mm) | 45.20 |
| Cutting Height (Decimal Inch) | 1.7795 |
| Minimum Insert Width (mm) | 7.70 |
| Minimum Insert Width (Decimal Inch) | 0.3031 |
| Maximum Insert Width (mm) | 8.50 |
| Maximum Insert Width (Decimal Inch) | 0.3346 |
| Complete Insert Compatibility | TAG N8C; TAGB 808Y; TAGB 840Y; TAGBA 80-40YZ |
| Complete Tool Block/Toolholder Style Compatibility | SGTBK 38-9; SGTBK 40-9; SGTBK 50-9; SGTBU 38.1-9 |
