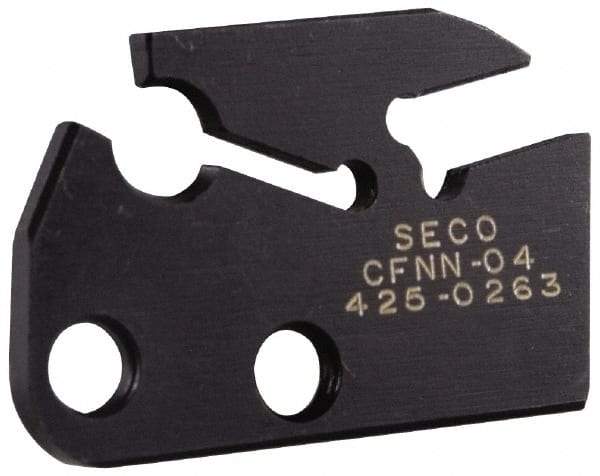

Seco - 0.118" Blade Width, 7.02" OAL, Single End Indexable Cut-Off Blade - 0.866" Max Depth of Cut, CFNN Blade, MDT Series
Item #: 72016348
Brand: Seco
Model #: 27200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Blade Width (Decimal Inch) | 0.1180 |
| Blade Overall Length (Decimal Inch) | 7.0200 |
| Blade Style | CFNN |
| Insert Style | LC.. |
| Insert Width (mm) | 4.00 |
| Insert Width (Decimal Inch) | 0.1575 |
| Series | MDT |
| Insert Seat Size | 4 |
| Tool Block/Toolholder Style | SFN |
| Insert Holding Method | Self Grip |
| Maximum Depth of Cut (Decimal Inch) | 0.8660 |
| Insert Corner Radius (Decimal Inch) | 0.0080-0.0160 |
| Complete Insert Compatibility | LC.. 1604.. |
| Complete Tool Block/Toolholder Style Compatibility | SFN100N |
| Manufacturers Catalog Number | CFNN-04 |
| Overall Width (Decimal Inch) | 1.0150 |
