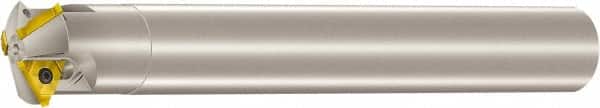

Vargus - 1.437" Cut Diam, 5.12" Max Depth of Cut, 1" Shank Diam, Internal Indexable Thread Mill - Insert Style 3UI, 3 Inserts, Toolholder Style TM SC C, 8.346" OAL
Item #: 71973960
Brand: Vargus
Model #: 67747
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.437 |
| Maximum Hole Depth (Decimal Inch) | 5.1200 |
| Insert Style | 3UI |
| Insert Size | 3/8"U |
| Toolholder Style | TM SC C |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 8.3460 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Neck Diameter (Decimal Inch) | 1.1140 |
