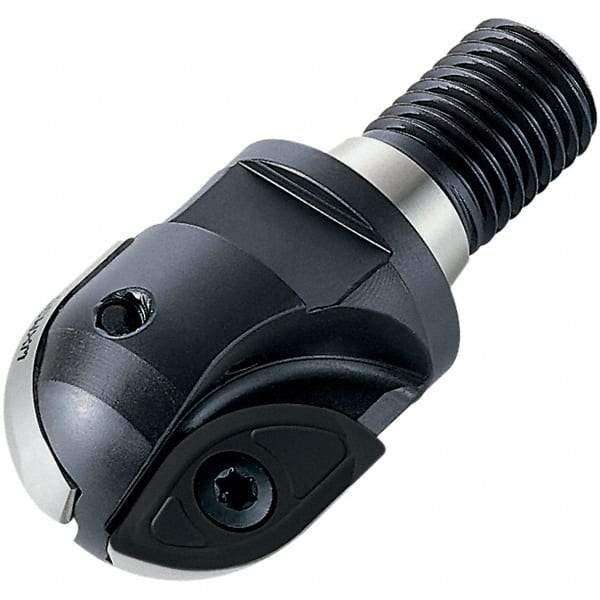

Walter - 1-1/4" Cut Diam, 0.98" Max Depth of Cut, 1.102" Shank Diam, Indexable Ball Nose End Mill - 1.58" Head Length, Modular Connection, F2339 Toolholder, XDMT 2506159 R Insert
Item #: 71970453
Brand: Walter
Model #: 5026703
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 1.1020 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | XDMT 2506159 R |
| Toolholder Style | F2339 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.5800 |
| Projection (Decimal Inch) | 1.5800 |
