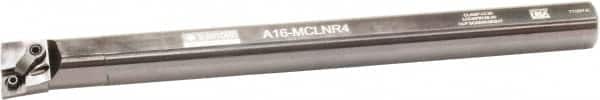

Sumitomo - 3.03" Min Bore Diam, 16" OAL, 2-1/2" Shank Diam, A-MCLN Indexable Boring Bar - CNMG 432 Insert, Pin & Clamp Holding Method
Item #: 71969265
Brand: Sumitomo
Model #: U102003
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MCLN |
| Series | ANSI |
| Minimum Bore Diameter (Decimal Inch) | 3.0300 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 16.0000 |
| Shank Diameter (Decimal Inch) | 2.5000 |
| Insert Compatibility | CNMG 432 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Positive |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 1.5310 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 10 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | CNMG 432 |
| Toolholder Material | Steel |
