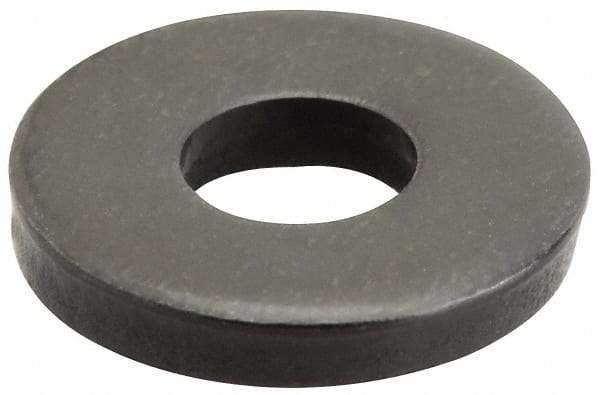

Gibraltar - 7/8" Screw, Grade 18-8 Stainless Steel Standard Flat Washer - 29/32" ID x 1-3/4" OD, 5/32" Thick, Plain Finish
Item #: 71925754
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 7/8 |
| Inside Diameter (Inch) | 29/32 |
| Inside Diameter (Decimal Inch) | 0.9063 |
| Outside Diameter (Inch) | 1-3/4 |
| Outside Diameter (Decimal Inch) | 1.7500 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (Inch) | 5/32 |
| Material Grade | 18-8 |
| Material | Stainless Steel |
| Finish/Coating | Plain |
| Inside Diameter Tolerance (Decimal Inch) | -0.010 to 0.010 |
| Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.010 |
| Hardness | Rockwell C36-C42 |
