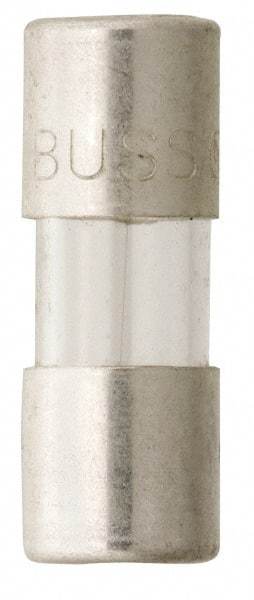

Cooper Bussmann - 250 VAC, 32 VDC, 5 Amp, Fast-Acting Miniature Glass Fuse - 15mm OAL, 10 at 125 V kA Rating, 5mm Diam
Item #: 71924807
Brand: Cooper Bussmann
Model #: BK-C520-5-R
Exact Tooling IR#: 04
Features and Benefits
Miniature glassfuses are constructed of a conductive metal placed on a small glass body. Fuses with glass bodies are easier to see if they are blown. They are commonly used in appliances and electronics.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Glass |
| Amperage | 5 |
| Voltage | 250 VAC; 32 VDC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 15 |
| Overall Length (Decimal Inch) | 0.5910 |
| Overall Diameter (mm) | 5.00 |
| Overall Diameter (Decimal Inch) | 0.1970 |
| Material | Glass |
| Interrupting Rating (A) | 10000 @ 125 V; 200 @ 250 V |
| Interrupting Rating (kA) | 10 @ 125 V |
| Standards Met | CSA Class 1422-01 File 53787 Certified; RoHS 2002/95/EC; UL Listed 248-14; UL Listed Guide JDYX File E19180 |
