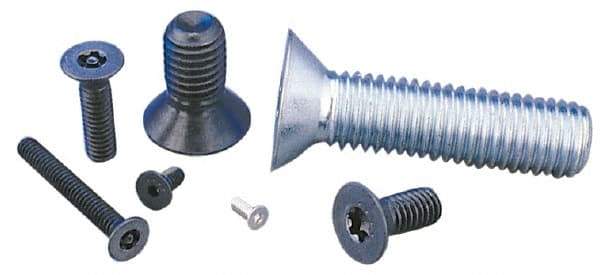

Camcar - 1/4-28 UNF Torx Plus Drive, 82° Flat Screw - Alloy Steel, Black Oxide Finish, Fully Threaded, 1/2" OAL
Item #: 71887996
Brand: Camcar
Model #: 40109
Exact Tooling IR#: 04
Features and Benefits
Flat head types have flat surfaces that taper toward the screw body to allow for countersinking. The flat head lies flush against the workpiece.
Torx Plus fasteners require Torx Plus drivers to achieve full torque. Standard Torx drivers can also be used to tighten and loosen fasteners but will not achieve the same torque.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | 82 Degree Flat |
| Drive Type | Torx Plus |
| Thread Size (Inch) | 1/4-28 |
| Length Measurement Type | Overall Length |
| Length (Inch) | 1/2 |
| Material | Alloy Steel |
| Finish/Coating | Black Oxide |
| Full or Partial Threading | Fully Threaded |
| Thread Standard | UNF |
| Fastener Standard | ASME/ANSI B18.3; ASTM F835 |
| Torx Drive Size | T30 |
