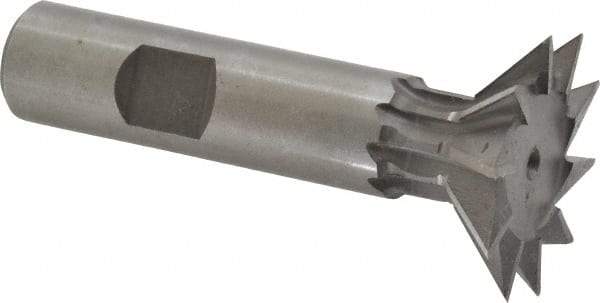

Made in USA - 1-3/8" Diam x 3/8" Width of Cut, 45° Included Angle, High Speed Steel Dovetail Cutter - 5/8" Shank Diam, 2-1/2" Shank Length, 2-7/8" Overall Length, Weldon Flat, Uncoated
Item #: 71836787
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Included Angle | 45 |
| Cutting Diameter (Inch) | 1-3/8 |
| Cutting Diameter (Decimal Inch) | 1.3750 |
| Cutting Width (Inch) | 3/8 |
| Cutting Width (Decimal Inch) | 0.3750 |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 2-7/8 |
| Shank Length (Inch) | 2-1/2 |
| Number of Teeth | 10 |
| Weldon Flat | Yes |
