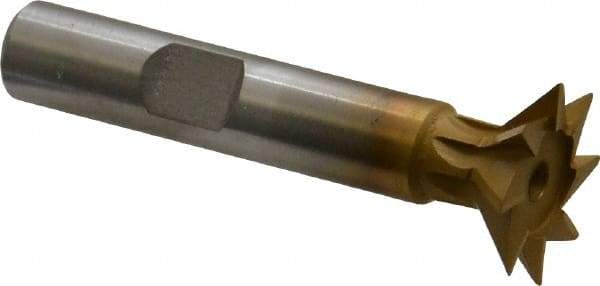

Made in USA - 3/4" Diam x 3/16" Width of Cut, 45° Included Angle, High Speed Steel Dovetail Cutter - 3/8" Shank Diam, 1-15/16" Shank Length, 2-1/8" Overall Length, Weldon Flat, TiN Coated
Item #: 71834485
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Included Angle | 45 |
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Width (Inch) | 3/16 |
| Cutting Width (Decimal Inch) | 0.1875 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/8 |
| Shank Length (Inch) | 1-15/16 |
| Number of Teeth | 8 |
| Weldon Flat | Yes |
