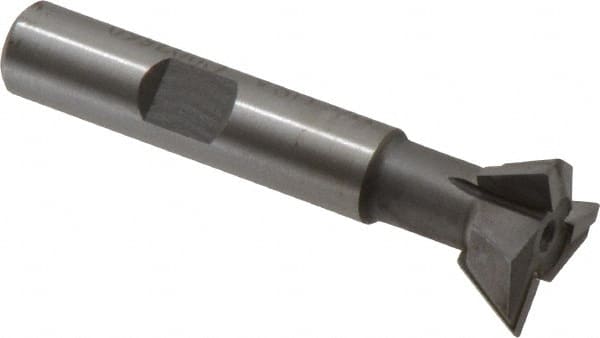

Made in USA - 3/4" Diam x 1/4" Width of Cut, 60° Included Angle, Carbide-Tipped Dovetail Cutter - 3/8" Shank Diam, 2-1/4" Overall Length, 0.02" Corner Radius, Weldon Flat, Uncoated
Item #: 71833487
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cut faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Included Angle | 60 |
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Width (Inch) | 1/4 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Material | Carbide-Tipped |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/4 |
| Number of Teeth | 3 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Weldon Flat | Yes |
