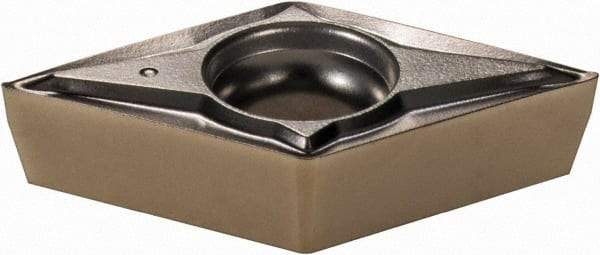

Walter - DCGT32.50.5 PF2 Grade WSM20 Carbide Turning Insert - TiAlN/Al2O3/ZrCN Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.008" Corner Radius
Item #: 71749741
Brand: Walter
Model #: 5834965
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 32.50.5 |
| Material | Carbide |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4580 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | WSM20 |
| Coating | TiAlN/Al2O3/ZrCN |
| Material Grade | M20/S20/P20 |
| Chip Breaker | PF2 |
| ISO Number | DCGT11T302-PF2 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DCGT3(2.5)0.5-PF2 |
| Primary Workpiece Material | M; S |
| Secondary Workpiece Material | P |
| Included Angle | 55 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 1.98 |
| Maximum Depth of Cut (Decimal Inch) | 0.0780 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
