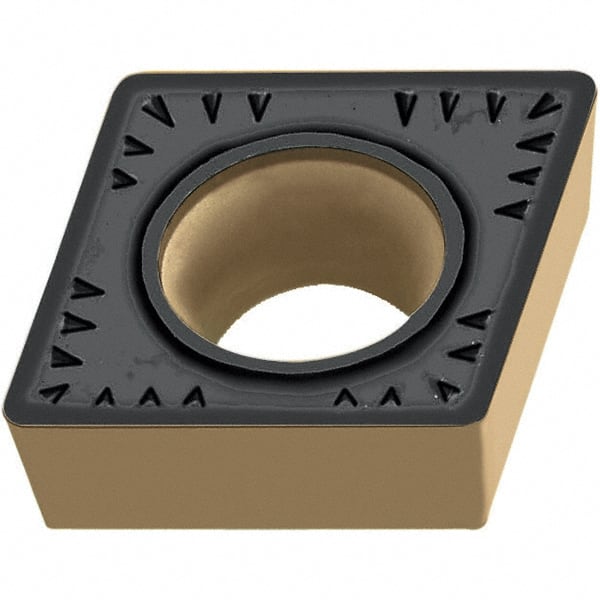

CCMT432-PM5WAK20 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 12.9mm Long, 1/2″ Inscribed Circle, 1/32″ Corner Radius, 80° Diamond, Series Tiger-tec
Item #: 71745251
Brand: Walter
Model #: 5022077
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WAK20 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | Tiger-tec |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5080 |
| Insert Length (mm) | 12.90 |
| Primary Workpiece Material | K |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | P |
| Secondary Workpiece Material Code | P |
| Iso Code | CCMT120408-PM5 |
| Standards | ISO |
| Manufacturers Catalog Number | CCMT432-PM5 |
| Material Grade | K20; P10 |
| Chip Breaker | PM5 |
| Single Or Double End | Single |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | Turning |
 | |
| MSC Part # | 71745251 |
| Mfr Part # | 5022077 |
| Country of OriginCountry of Origin is subject to change | Germany |
