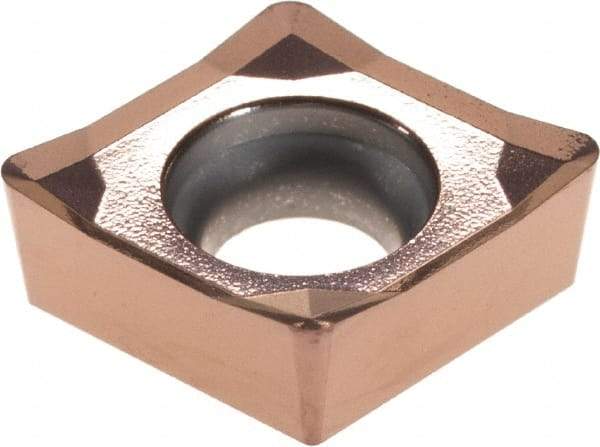

Walter - CCGT32.52 PM2 Grade WXN10 Carbide Turning Insert - TiCN Plus Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 71743157
Brand: Walter
Model #: 5025573
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (mm) | 9.68 |
| Length (Decimal Inch) | 0.3810 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | WXN10 |
| Coating | TiCN Plus |
| Material Grade | N10/P01/M01 |
| Chip Breaker | PM2 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | CCGT09T308-PM2 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCGT3(2.5)2-PM2 |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | M; P |
| Included Angle | 80 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
