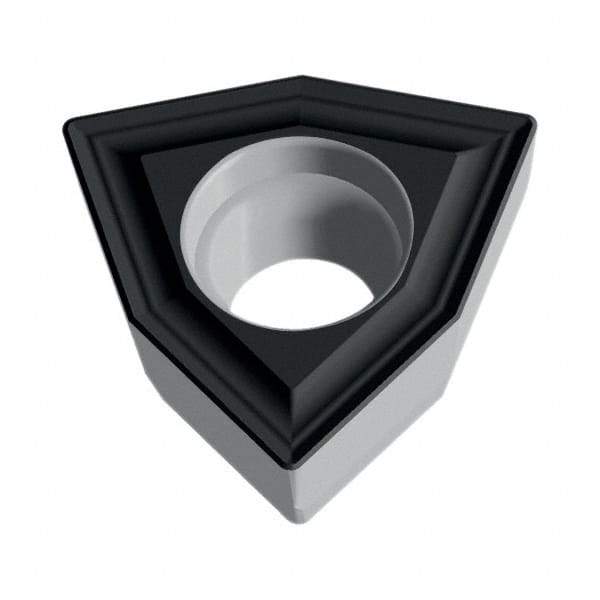

Walter - WOMX040304 D57 Grade WXP40 Carbide Indexable Drill Insert - TiCN Finish, Trigon, 1/4" Inscribed Circle
Item #: 71723993
Brand: Walter
Model #: 5033097
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | WOMX |
| Insert Size | 040304 |
| Material | Carbide |
| Material Grade | P40/M30/S30 |
| Manufacturer's Grade | WXP40 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 3.18 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Trigon |
| Length (mm) | 4.20 |
| Length (Decimal Inch) | 0.1654 |
| Coating | TiCN |
| Coating Process | PVD |
| Chipbreaker | D57 |
