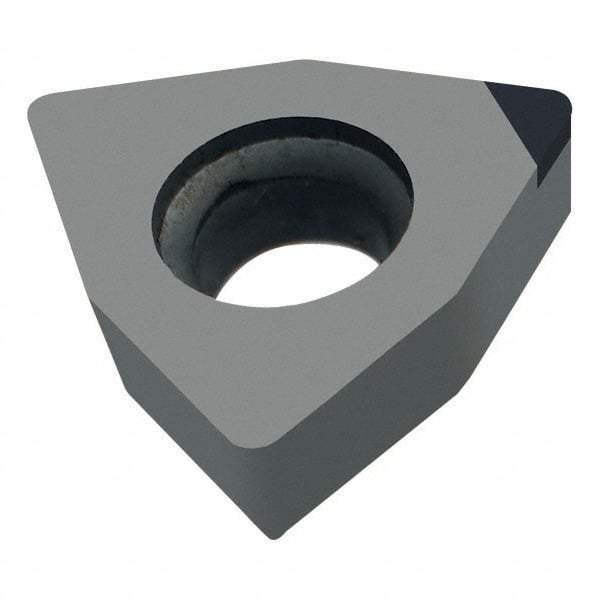

Walter - WCMW521 Grade WCB50 CBN Boring Insert - Uncoated, Trigon, 5/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 71723670
Brand: Walter
Model #: 5045327
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Material | CBN |
| Insert Style | WCMW |
| Insert Size | 521 |
| Material Grade | H10/K10 |
| Manufacturer's Grade | WCB50 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.1060 |
| Rake | Positive |
| Cutting Direction | Neutral |
| Series | Tiger-tec |
| Insert Holding Method | Screw |
| Shape | Trigon |
