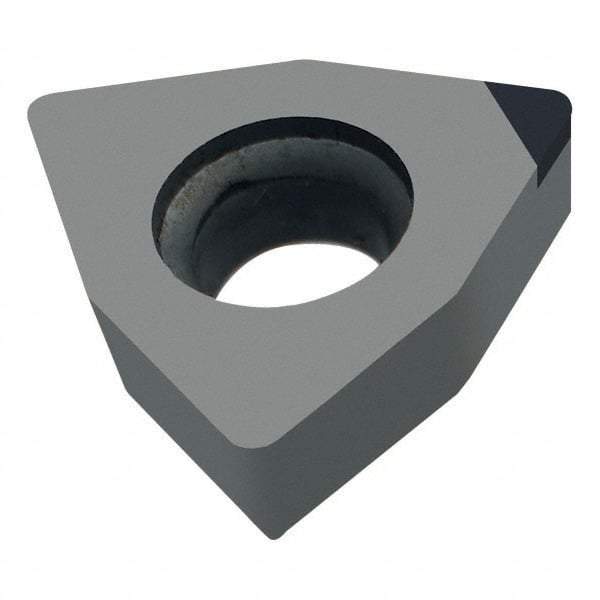

Walter - WCMW730.5 Grade WCB50 CBN Boring Insert - Uncoated, Trigon, 7/8" Inscr Circle, 3/16" Thick, 0.008" Corner Radius
Item #: 71723597
Brand: Walter
Model #: 5043156
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Material | CBN |
| Insert Style | WCMW |
| Insert Size | 730.5 |
| Material Grade | H10/K10 |
| Manufacturer's Grade | WCB50 |
| Inscribed Circle (mm) | 22.23 |
| Inscribed Circle (Inch) | 7/8 |
| Inscribed Circle (Decimal Inch) | 0.8750 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.1500 |
| Rake | Positive |
| Cutting Direction | Neutral |
| Series | Tiger-tec |
| Insert Holding Method | Screw |
| Shape | Trigon |
