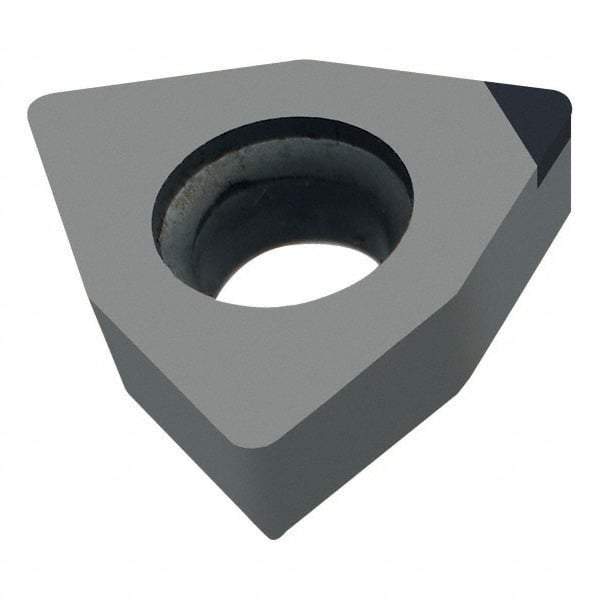

Walter - WCMW21.51 Grade WCB80 CBN Boring Insert - Uncoated, Trigon, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 71723563
Brand: Walter
Model #: 5042657
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Material | CBN |
| Insert Style | WCMW |
| Insert Size | 21.51 |
| Material Grade | K05/H15 |
| Manufacturer's Grade | WCB80 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.1690 |
| Rake | Positive |
| Cutting Direction | Neutral |
| Series | Tiger-tec |
| Insert Holding Method | Screw |
| Shape | Trigon |
