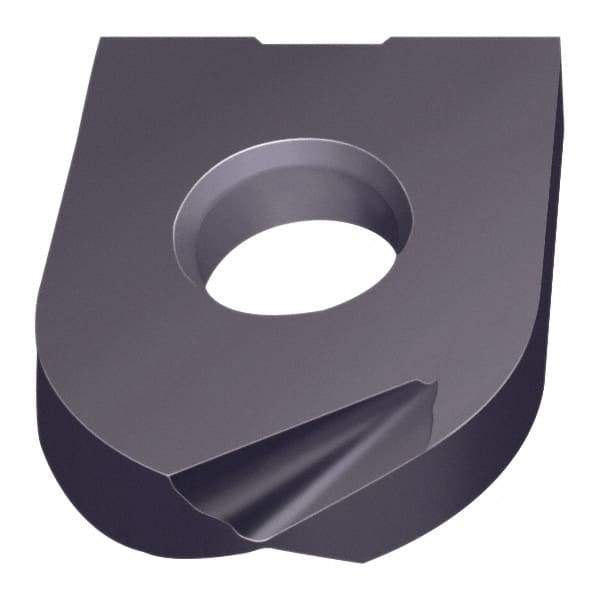

Walter - P3201D16 Grade WKP25 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 0.1181" Thick
Item #: 71718340
Brand: Walter
Model #: 5092243
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P3201 |
| Insert Size | D16 |
| Material | Carbide |
| Material Grade | P25/K25 |
| Manufacturer's Grade | WKP25 |
| Coating | TiCN/Al2O3/TiN |
| Thickness (Decimal Inch) | 0.1181 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1969 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Ball Nose |
| Manufacturers Catalog Number | P3201-D16 |
