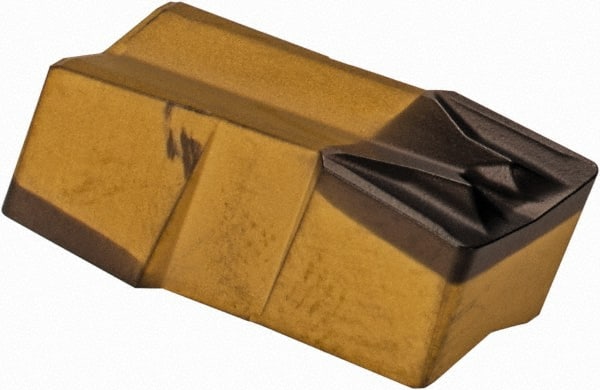

Iscar - GIF6.35-0.50 IC8250 Carbide Grooving Insert
Item #: 71476501
Brand: Iscar
Model #: 6405223
Product Specifications
| Insert Style | GIF |
| Insert Size | 635050 |
| Material | Carbide |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1970 |
| Relief Angle | 7 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.51 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Coating Process | CVD |
| Overall Length (mm) | 15.29 |
| Overall Length (Decimal Inch) | 0.6020 |
| Series | Cut Grip |
| ISO Number | GIF 6.35-0.50 |
| Manufacturers Catalog Number | GIF 6.35-0.50 |
| Series Number | Cut Grip |
| Insert Holding Method | Self Grip |
| Corner Radius (Inch) | 0.0200 |
