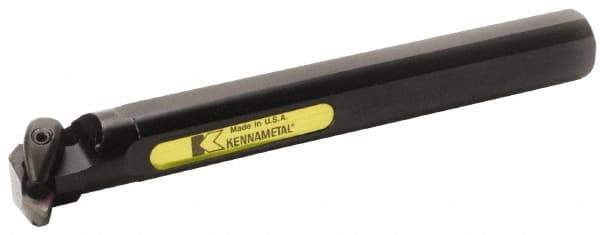

Kennametal - 52mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, A-DDPN-KC Indexable Boring Bar - DN.. Insert, Clamp Holding Method
Item #: 71333983
Brand: Kennametal
Model #: 2441962
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-DDPN-KC |
| Series | Kenclamp |
| Minimum Bore Diameter (mm) | 52.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.0472 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5750 |
| Insert Compatibility | DN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Lead Angle | 27.5 |
| Center to Cutting Edge (mm) | 30.00 |
| Insert Thickness (Inch) | 1/4 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | DN.. 150608 |
| Toolholder Material | Steel |
