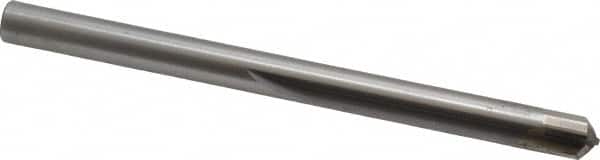

Die Drill Bit: 13/32″ Dia, 118 °, Solid Carbide Uncoated, 3″ Flute, 5-1/4″ OAL, Series 150
Item #: 71258263
Brand: Made in USA
Model #: 15004062-
Product Specifications
| Drill Bit Type | Die |
| Drill Bit Size (Inch) | 13/32 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (Inch) | 3 |
| Flute Length (Decimal Inch) | 3.0000 |
| Drill Point Angle | 118 |
| Overall Length (Inch) | 5-1/4 |
| Shank Diameter (Decimal Inch) | 0.3906 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.4062 |
| Overall Length (Decimal Inch) | 5.2500 |
| Series | 150 |
| Number Of Flutes | 2 |
| Point Type | Notched |
| Cutting Direction | Right Hand |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.000 to -0.038 mm; +0.0000 to -0.0015 in |
| Primary Workpiece Material | Case Hardened Steel; Hardened Steel |
| Secondary Workpiece Material | Case Hardened Steel; Hardened Steel |
| Maximum Drilling Depth (Decimal Inch) | 2.1000 |
| Shank Diameter (Decimal Inch) | 25/64 |
