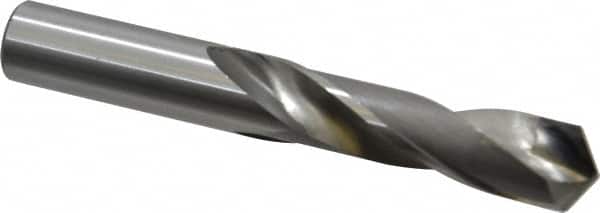

Screw Machine Length Drill Bit: 0.6562″ Dia, 118 °, Carbide Tipped Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 110
Item #: 71213425
Brand: CJT
Model #: 11006562-
Product Specifications
| Drill Bit Size (Inch) | 21/32 |
| Tool Material | Carbide Tipped |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.6563 |
| Drill Bit Size (Decimal Inch) | 0.6562 |
| Overall Length (Inch) | 4-1/2 |
| Series | 110 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.8000 |
| Drill Bit Diameter Tolerance | +0.000 to -0.025 mm; +0.0000 to -0.0010 in |
| Flute Length (Inch) | 2-7/8 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
