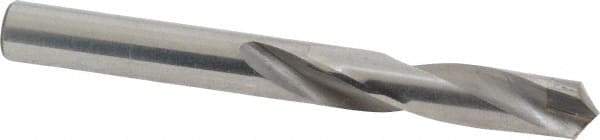

Made in USA - 19/64" 118° Spiral Flute Carbide-Tipped Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 1-5/8" Flute Length, 2-13/16" OAL, Standard Point, Straight Shank
Item #: 71213193
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cut faster than high speed steel. It is commonly used on ferrous and nonferrous metals including cast iron.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.2969 |
| Drill Bit Size (Inch) | 19/64 |
| Drill Point Angle | 118 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-5/8 |
| Overall Length (Inch) | 2-13/16 |
| Point Type | Standard |
| Shank Diameter (Inch) | 19/64 |
| Maximum Drilling Depth (Decimal Inch) | 1.0000 |
| Spiral Type | Regular Spiral |
| Threaded Shank | No |
| Web Configuration | Parallel |
| Drill Bit Diameter Tolerance (mm) | +0.000 to -0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Web Thinning | Web-Thinned |
