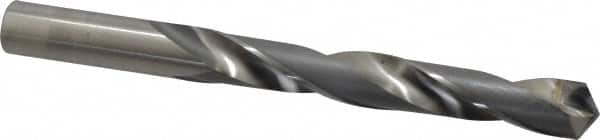

Made in USA - 45/64" 118° Carbide-Tipped Jobber Drill - Bright Finish, Right Hand Cut, Spiral Flute, Tanged Shank, 7-5/8" OAL, Standard Point
Item #: 71210454
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cuts faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 45/64 |
| Drill Bit Size (Decimal Inch) | 0.7031 |
| Drill Point Angle | 118 |
| Drill Bit Material | Carbide-Tipped |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Tanged |
| Coolant Through | No |
| Flute Length (Inch) | 5-5/8 |
| Flute Length (mm) | 142.88 |
| Overall Length (mm) | 193.68 |
| Overall Length (Inch) | 7-5/8 |
| Point Type | Standard |
| Shank Diameter (Inch) | 45/64 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.025 to 0.000 |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.0010 to 0.000 |
| Material Grade | C2/K20 |
