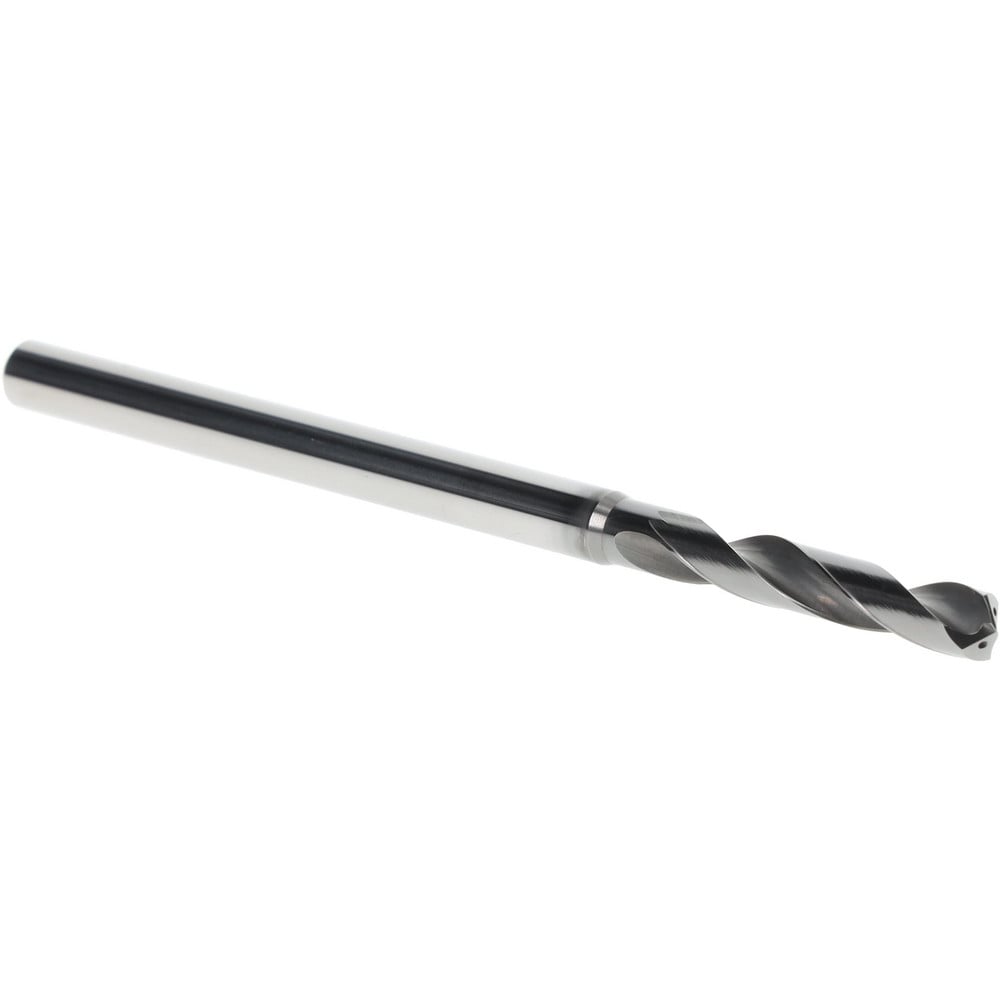

Screw Machine Length Drill Bit: 11/64" Dia, 140 deg Point, Solid Carbide
Item #: 36464204
Brand: OSG
Model #: 520017112
Product Specifications
| Drill Bit Size (Inch) | 11/64 |
| Drill Bit Size (mm) | 4.37 |
| Drill Bit Size (Decimal Inch) | 0.1719 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Cr |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Point Type | R-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Series | 5200 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Proprietary Coating/Finish | WXL |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0 to -0.018 mm |
| Flute Length (mm) | 27.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Drill Bit Size Range (mm) | 3.50 - 5.00 |
| UNSPSC Code | 23241635 |
