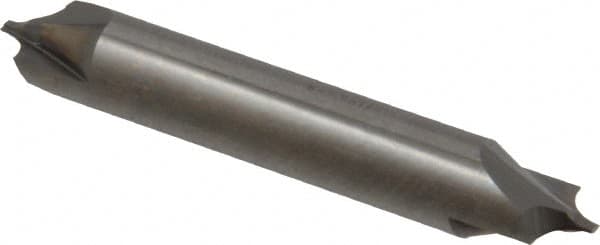

Value Collection - 5/32" Radius, 2 Flute, Solid Carbide, Double End, Corner Rounding End Mill - Uncoated, 0.06" Tip Diam, 2-1/2" Overall Length, 3/8" Shank Diam
Item #: 71098883
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Single or Double End | Double |
| Radius (Inch) | 5/32 |
| Radius (Decimal Inch) | 0.1563 |
| Number of Flutes | 2 |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 3/8 |
| Tip Diameter (Decimal Inch) | 0.0600 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Radius Tolerance (Decimal Inch) | +0.0005/-0.0005 |
