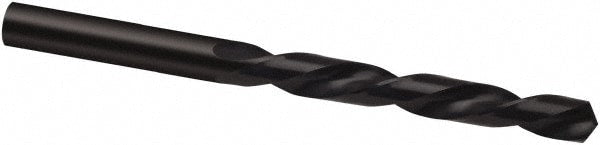

Jobber Drill: 4.10 mm Dia, 118 deg Point, Cobalt
Item #: 69340685
Brand: Guhring
Model #: 9003080041000
Product Specifications
| Drill Bit Size (mm) | 4.10 |
| Drill Bit Size (Decimal Inch) | 0.1614 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3438 |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Spiral Type | Regular |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6929 |
| Proprietary Coating/Finish | Steam Oxide |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 4.1 |
| Maximum Drilling Depth (Decimal Inch) | 2.6250 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 4.10 |
| Drill Bit Size (Decimal Inch) | 0.1614 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Left Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3438 |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9528 |
| Spiral Type | Regular |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6929 |
| Proprietary Coating/Finish | Steam Oxide |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 4.1 |
| Maximum Drilling Depth (Decimal Inch) | 2.6250 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 69340685 |
| Mfr Part # | 9003080041000 |
| Country of Origin Country of Origin is subject to change | Germany |
