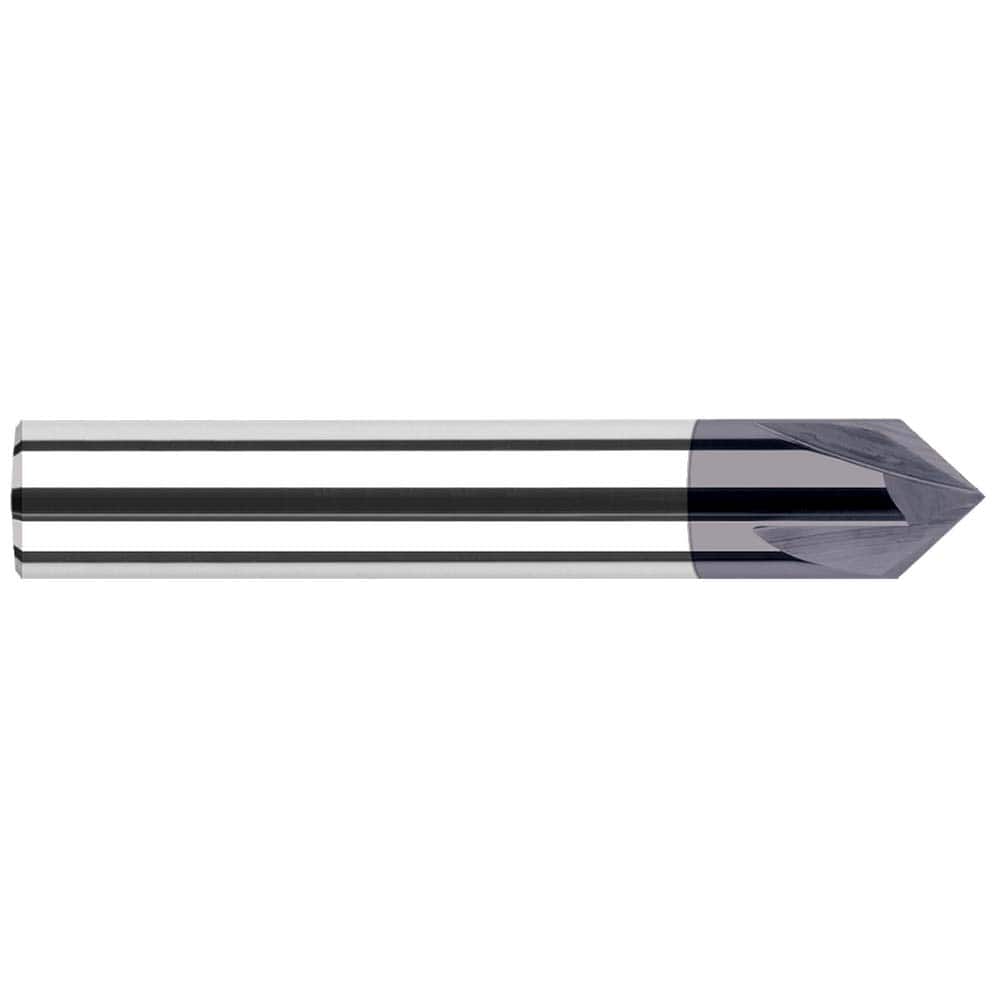

Harvey Tool - 2 Flute Chamfer Mill
Item #: 93849784
Brand: Harvey Tool
Model #: 47645-C3
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications.
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Cutter Head Diameter (Inch) | 1/4 |
| Included Angle B | 90 |
| Included Angle A | 90 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | AlTiN |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 2 |
| End Type | Single |
| Length of Cut (Decimal Inch) | 0.1200 |
| Cutting Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 1/4 |
| Overall Length (Decimal Inch) | 2-1/2 |
| Series/List | Chamfer Cutters - Pointed & Flat End |
