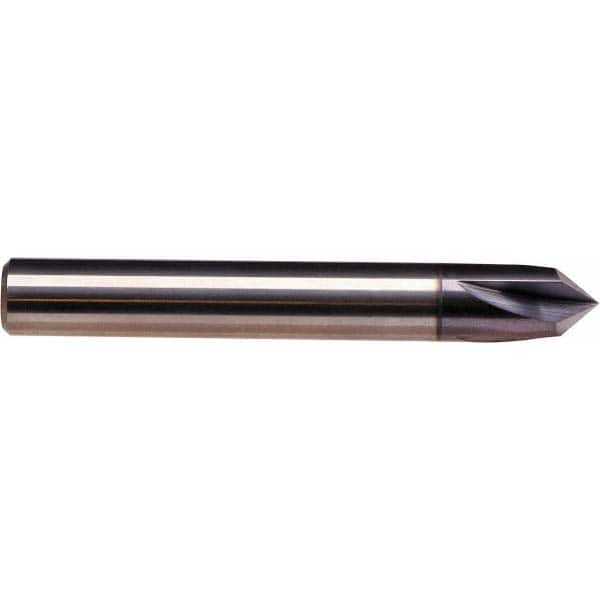

Emuge - 1/8" Diam 4 Flute Single End Solid Carbide Chamfer Mill
Item #: 46132049
Brand: Emuge
Model #: 1715A.090125
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics, and other tough-to-machine materials. It is commonly used in high performance applications.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Cutter Head Diameter (Inch) | 1/8 |
| Included Angle A | 90 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | TiAlN |
| Overall Length (Inch) | 2 |
| Shank Diameter (Inch) | 1/8 |
| Number of Flutes | 4 |
| End Type | Single |
| Tool Application | Chamfering |
| Shank Diameter (Decimal Inch) | 1/8 |
| Overall Length (Decimal Inch) | 2 |
