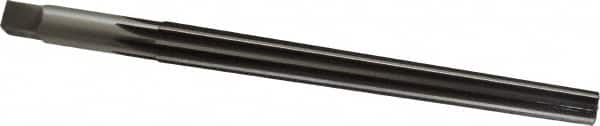

Cleveland - #9 Pin, 0.6066" Diam, 0.4805" Small End, 9/16" Diam Straight Shank, 6-1/16" Flute, Taper Pin Reamer
Item #: 63747091
Brand: Cleveland
Model #: C24264
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #9 |
| Small End Diameter (Decimal Inch) | 0.4805 |
| Reamer Diameter (Decimal Inch) | 0.6066 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (Inch) | 8-5/16 |
| Flute Length (Inch) | 6-1/16 |
| Shank Diameter (Inch) | 9/16 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
| Material Application | Alloy Steel; Carbon Steel; Cast Iron; Plastics |
