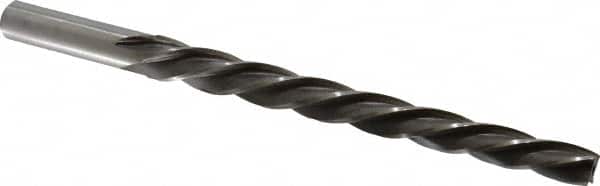

Made in USA - #9 Pin, 0.6066" Diam, 0.4805" Small End, 9/16" Diam Straight Shank, 6-1/16" Flute, Taper Pin Reamer
Item #: 72403090
Brand: Made in USA
Model #:
Features and Benefits
Helical flute reamers are used for reaming taper pin holes in blind and through-hole operations. These flutes are designed with a high spiral construction for reduced chip packing.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #9 |
| Small End Diameter (Decimal Inch) | 0.4805 |
| Reamer Diameter (Decimal Inch) | 0.6066 |
| Flute Type | Helical |
| Shank Type | Straight |
| Overall Length (Inch) | 8-5/16 |
| Flute Length (Inch) | 6-1/16 |
| Shank Diameter (Inch) | 9/16 |
| Spiral Direction | Left Hand |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
