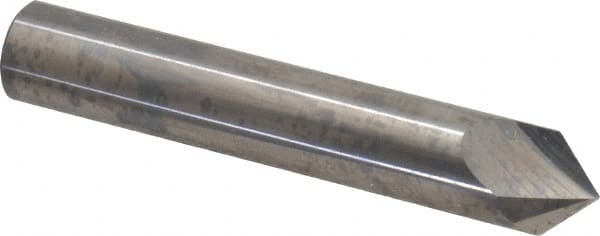

Made in USA - 1/2" Body Diam, 90°, 3" OAL, Solid Carbide Spotting Drill
Item #: 06317366
Brand: Made in USA
Model #:
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Body Diameter (Inch) | 1/2 |
| Body Diameter (Decimal Inch) | 0.5000 |
| Drill Point Angle | 90 |
| Spotting Drill Material | Solid Carbide |
| Spotting Drill Finish/Coating | Bright |
| Overall Length (Inch) | 3 |
| Flute Length (Inch) | 1/4 |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Tool Application | Chamfering; Spotting |
| Insertable Cutter Head | No |
| Tapered | No |
