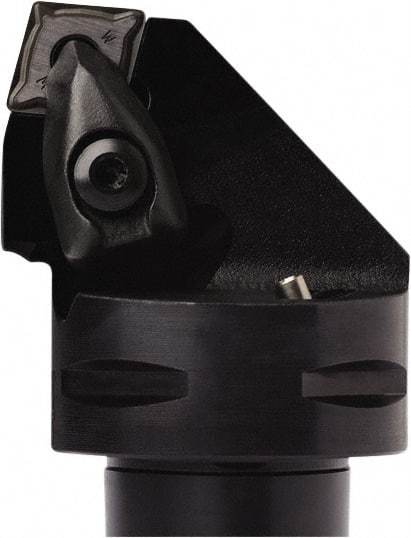

Seco - Right Hand Cut, Size C6, CN.. 1204.. Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 65mm Head Length, Series Seco-Capto
Item #: 70841531
Brand: Seco
Model #: 33778
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | CN.. 1204.. |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | CNGA 120404S-01020-L1-B; CNGA 120404S-01525-L1-U; CNGA 120408E25-L1-U; CNGA 120408E-L1-B; CNGA 120408S-01020-L1-B; CNGA 120408S-01020-L1-U; CNGA 120408S-01020-L1WZB; CNGA 120408S-01020-L1WZU; CNGA 120408S-01525-L1-B; CNGA 120408S-01525-L1-U; CNGA 120408S- |
