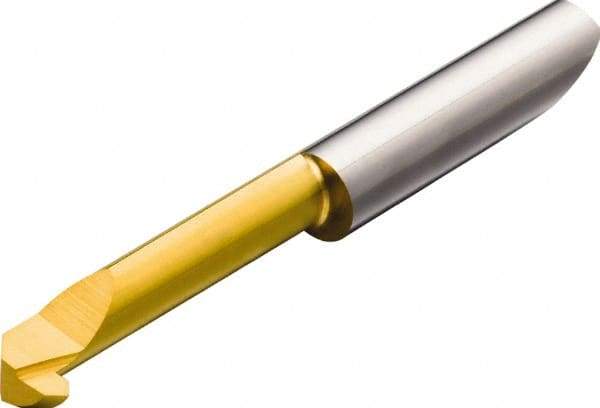

Sandvik Coromant - 2.45mm Groove Width, 5.2mm Min Hole Diam, 15mm Max Hole Depth, Turning Grooving Tool - 15mm Projection, 36.25mm OAL, 0.2mm Radius, Solid Carbide, TiAlN/TiN Finish
Item #: 70813423
Brand: Sandvik Coromant
Model #: 5726312
Exact Tooling IR#: 04
Features and Benefits
Turning tool utilizes a single point to cut the exterior or interior of numerous materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Turning |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Shank Diameter (mm) | 5.00 |
| Groove Width (Decimal Inch) | 0.0965 |
| Groove Width (mm) | 2.45 |
| Projection (Decimal Inch) | 0.5906 |
| Projection (mm) | 15.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.2047 |
| Minimum Hole Diameter (mm) | 5.20 |
| Maximum Hole Depth (Decimal Inch) | 0.5906 |
| Maximum Hole Depth (mm) | 15.00 |
| Overall Length (Decimal Inch) | 1.4272 |
| Overall Length (mm) | 36.25 |
| Finish/Coating | TiAlN/TiN |
| Radius (Decimal Inch) | 0.0079 |
| Radius (mm) | 0.20 |
| Manufacturer Grade | 1025 |
